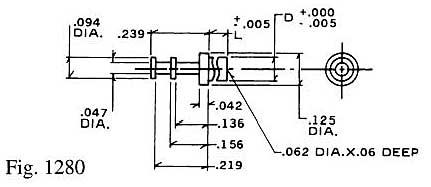

Non-Insulated TerminalsDimensional drawing
1280Turret Solid Miniature
Specification
- Part number
- 1280
- Type
- Turret Solid Miniature
- Category
- Non-Insulated Terminals
Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
