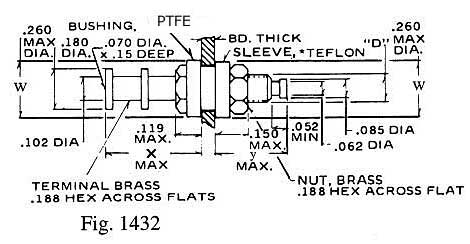

Insulated Terminals PTFEDimensional drawing
1432Turret
.195 Mounting Hole
Specification
- Part number
- 1432
- Type
- Turret
- Category
- Insulated Terminals PTFE
- Detail
- .195 Mounting Hole
Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
Related parts
Other parts in Insulated Terminals PTFE
1431Turret
.193 Mounting Hole
Insulated Terminals PTFE
1436Turret
.386 Mounting Hole
Insulated Terminals PTFE
1450Double Turret
External Threads
Insulated Terminals PTFE

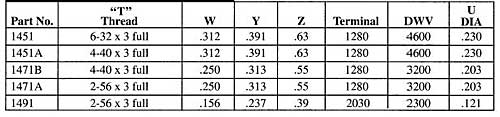

1451Double Turret
