Non-Insulated TerminalsDimensional drawing

2006Bifurcated Hollow Sub and Micro Miniature

.044 Mounting Hole

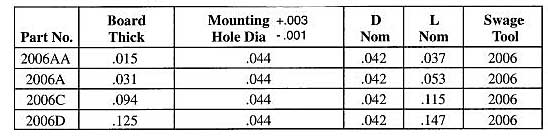

Staffall part 2006 — Bifurcated Hollow Sub and Micro Miniature
Product photograph

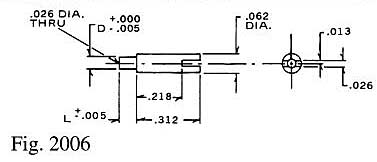

Dimensional drawing for Staffall part 2006
Dimensional drawing

Specification

Part number
2006
Type
Bifurcated Hollow Sub and Micro Miniature
Category
Non-Insulated Terminals
Detail
.044 Mounting Hole

Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
