Instrument Panel HardwareDimensional drawing

3100Misc

Knobs - Shaft Locks

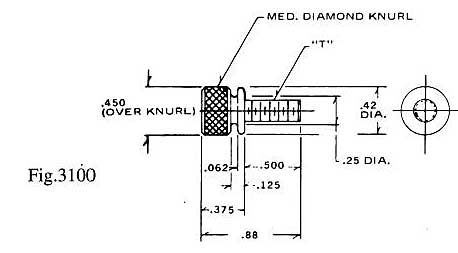

Dimensional drawing for Staffall part 3100 — Dimensional drawing

Specification

Part number: 3100
Type: Misc
Category: Instrument Panel Hardware
Detail: Knobs - Shaft Locks

Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
