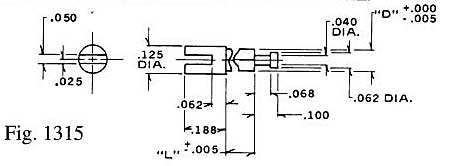

Non-Insulated TerminalsDimensional drawing
1315Bifurcated Feed-Thru

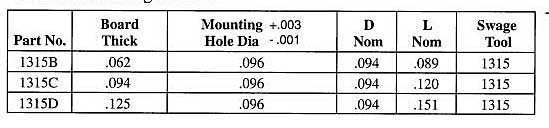

Specification
- Part number
- 1315
- Type
- Bifurcated Feed-Thru
- Category
- Non-Insulated Terminals
Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
