Insulated Terminals Hi Alumina CeramicDimensional drawing

1441Double Turret

Internal Threads

Staffall part 1441 — Double Turret
Product photograph

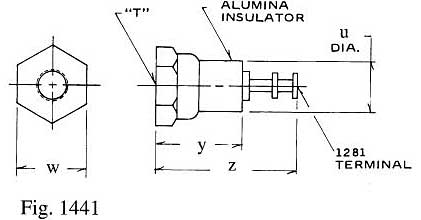

Dimensional drawing for Staffall part 1441
Dimensional drawing

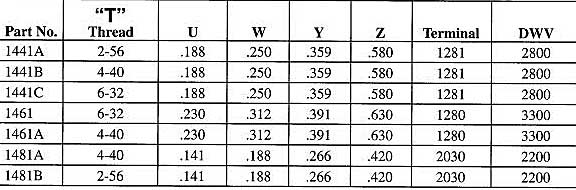

Specification

Part number
1441
Type
Double Turret
Category
Insulated Terminals Hi Alumina Ceramic
Detail
Internal Threads

Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
