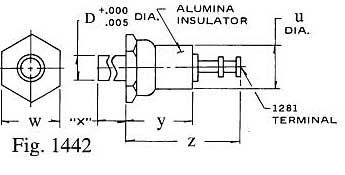

Insulated Terminals Hi Alumina CeramicDimensional drawing
1442Double Turret
Swage Type
Specification
- Part number
- 1442
- Type
- Double Turret
- Category
- Insulated Terminals Hi Alumina Ceramic
- Detail
- Swage Type
Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
