Non-Insulated TerminalsDimensional drawing

2030Turret Solid Subminiature

.064 Mounting Hole

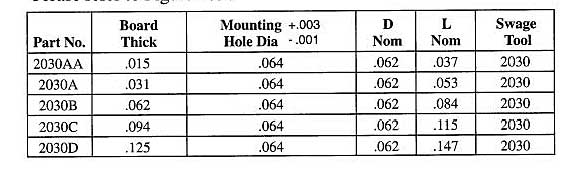

Staffall part 2030 — Turret Solid Subminiature
Product photograph

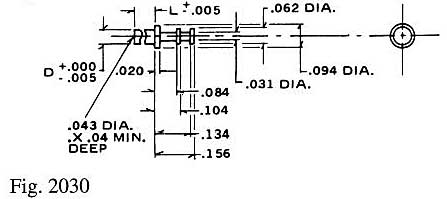

Dimensional drawing for Staffall part 2030
Dimensional drawing

Specification

Part number
2030
Type
Turret Solid Subminiature
Category
Non-Insulated Terminals
Detail
.064 Mounting Hole

Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
