Non-Insulated TerminalsDimensional drawing

2520Turret Solid Subminiature

.075 Mounting Hole

Staffall part 2520 — Turret Solid Subminiature
Product photograph

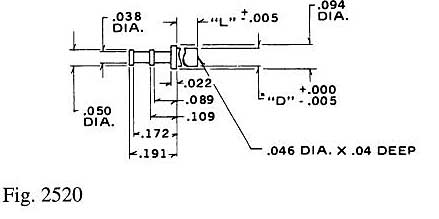

Dimensional drawing for Staffall part 2520
Dimensional drawing

Specification

Part number
2520
Type
Turret Solid Subminiature
Category
Non-Insulated Terminals
Detail
.075 Mounting Hole

Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
