Non-Insulated TerminalsDimensional drawing

2500Feed-Thru Turret Miniature and Subminiature

.093 Mounting Hole

Staffall part 2500 — Feed-Thru Turret Miniature and Subminiature
Product photograph

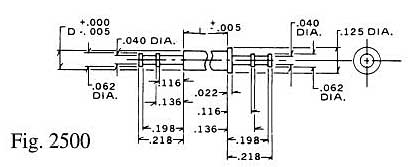

Dimensional drawing for Staffall part 2500
Dimensional drawing

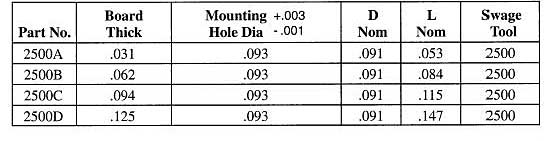

Specification

Part number
2500
Type
Feed-Thru Turret Miniature and Subminiature
Category
Non-Insulated Terminals
Detail
.093 Mounting Hole

Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
