Non-Insulated TerminalsDimensional drawing

2509Feed-Thru Turret Miniature and Subminiature

.075 Mounting Hole

Staffall part 2509 — Feed-Thru Turret Miniature and Subminiature
Product photograph

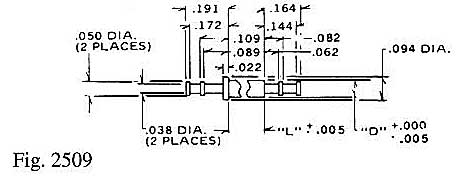

Dimensional drawing for Staffall part 2509
Dimensional drawing

Specification

Part number
2509
Type
Feed-Thru Turret Miniature and Subminiature
Category
Non-Insulated Terminals
Detail
.075 Mounting Hole

Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
