Insulated Terminals Molded DiallylDimensional drawing

760Double Turret

Internal Threads Turret Diameter .140

Staffall part 760 — Double Turret
Product photograph

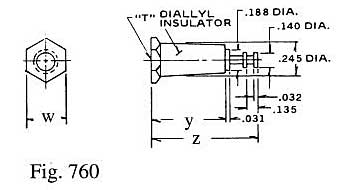

Dimensional drawing for Staffall part 760
Dimensional drawing

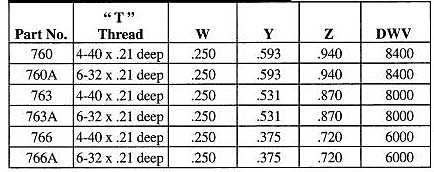

Specification

Part number
760
Type
Double Turret
Category
Insulated Terminals Molded Diallyl
Detail
Internal Threads Turret Diameter .140

Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
