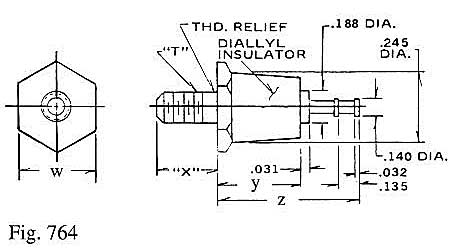

764Double Turret
External Threads Termimal Diameter .140

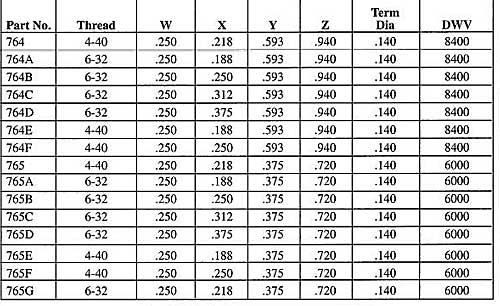

Specification
- Part number
- 764
- Type
- Double Turret
- Category
- Insulated Terminals Molded Diallyl
- Detail
- External Threads Termimal Diameter .140
Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
