1412Single Turret
Swage Type

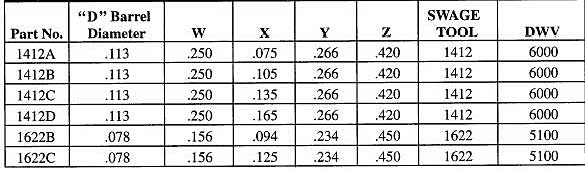

Specification
- Part number
- 1412
- Type
- Single Turret
- Category
- Insulated Terminals Molded Diallyl
- Detail
- Swage Type
Plating options and thickness are listed on the plating specifications page. Custom lengths, threads and platings are available — Staffall manufactures to print.
